EV Charger Setup in Kuala Lumpur: Costs and Quotes

Our own diagram, not a photo. It shows what labour-only fitting covers (breaker, RCD, cable, mounting, test), the charger itself, and the TNB supply step.

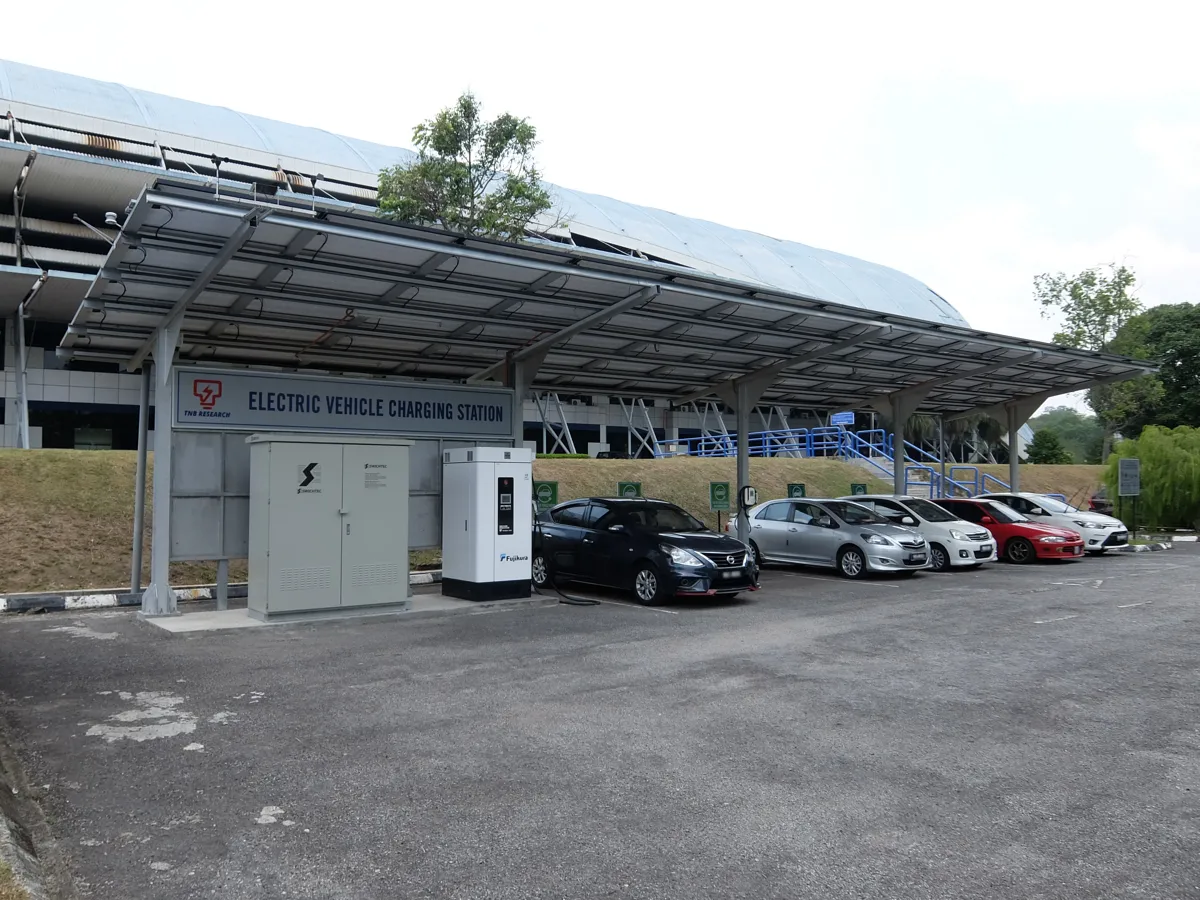

A public EV charging station at TNB Research, Kajang, Selangor (March 2019). This is a public charger, not a home charger. Photo: Chongkian, CC BY-SA 4.0, via Wikimedia Commons. Resized and converted to WebP.

Dispatcher does not do the work. The business you choose does the job and gives you the test report.

What are the rules for a home EV charger?

You need an ST-registered contractor, a charger with the ST-SIRIM label, and a circuit just for the charger.

• Only an ST-registered competent person or electrical contractor should do the wiring. TNB says do not do it yourself.
• The charger must have the ST-SIRIM label.
• Plugging the car straight into a normal wall socket (Mode 1) is not allowed.
• The charger needs its own circuit with a 30 mA RCD. TNB asks for Type A with DC detection, or Type B.
• Single-phase supply handles loads up to 10 kW (TNB). myTNB says landed homes may benefit from three-phase for a charger of 7 kW and above.
• Faster 11 to 22 kW chargers need three-phase supply. Only TNB can approve the upgrade.
• Ask for the test report when the job is done.

Live in a KL condo? Start with your JMB

This matters in condos and serviced apartments, for example in Mont Kiara, Bangsar or Setapak. The cable from your unit to your parking bay runs over common property. So you need written approval from your JMB or MC before any work starts.

1. Read your building's by-laws. Ask management if there is an EV charging policy.
2. Ask a registered contractor to check your DB box, your supply type and the cable route to your bay.
3. Get the plan in writing. It should name the charger and its ST-SIRIM label, the cable size and route, and the RCD type.
4. Send the plan to the JMB or MC with the contractor's ST registration. Pay any works deposit the building asks for.
5. After the job, give the test report to management.

Is your bay far from your unit? Then the cable run is long and costs more. Ask management if the building can give you a sub-metered supply or shared chargers instead.

Landed home? Check these three things

• Where you park. Porch, garage or basement. The quote depends on how far this is from your DB box.
• Your supply. Single-phase or three-phase. A registered contractor can tell from your DB box.
• Your DB box. An older board may need a new RCD or more space.

How to choose an EV charger business in KL

Pick the business whose written quote answers every line below. Then compare totals.

• ✓ Gives an ST registration number you can look up on the Suruhanjaya Tenaga list.
• ✓ Visits or asks for photos of your DB box, your supply and the route to your bay.
• ✓ States how many metres of cable are included. Advertised fitting-only packages include 10 to 15 metres.
• ✓ Names the RCD type and the MCB size.
• ✓ Says if the cable goes in surface trunking or inside the wall.
• ✓ Includes testing and a test report.
• ✓ States the workmanship warranty.
• ✓ Says whether the charger itself is included.
• ✓ For a condo, offers to prepare the plan your JMB or MC will ask for.

Dispatcher has not checked any business's licence yet, so do the ST check yourself.

How much does it cost to put in a home EV charger in KL?

If you already have the charger, KL and Selangor businesses list the fitting at RM900 to RM1,900 on single-phase, based on Voltara and EV Connection price pages. That is labour only, charger not included. A 7 kW charger supplied and fitted is about RM3,399 to RM4,050, based on Voltara and EVHOME price pages. These are public prices checked on 20 October 2026, not Dispatcher quotes.

The job	Public price (checked 20 Oct 2026)	What the price covers
Labour only, charger not included, single-phase	RM900 to RM1,900	Voltara from RM900, cable length not stated. United Power Engineering RM1,280 with up to 10 m. EVHOME RM1,600 with up to 15 m. EV Connection RM1,900 sale price (list price RM1,999) with 10 m.
Labour only, charger not included, three-phase (11 or 22 kW)	RM1,500 to RM1,900	United Power Engineering RM1,500 for 11 kW and RM1,780 for 22 kW. EVHOME RM1,800 with up to 15 m. EV Connection RM1,900 sale price (list price RM1,999) with 10 m.
7 kW charger, supplied and fitted	RM3,399 to RM4,050	Voltara from RM3,399 with 10 m. EVHOME RM4,050 with up to 15 m.
Cable point already run from your DB box	RM500	EVHOME mounts and connects the charger. RM950 if the DB box needs changes.

Where the money goes

Cable length. Most packages cover 10 to 15 m from your DB box to the charger. A porch next to the DB box fits inside that. A charger at the back of a terrace house, or a condo bay two floors down, may not. EVHOME charges RM30 to RM35 per extra metre past 15 m.

Surface or hidden. Cable in trunking on the wall is the standard price. EVHOME charges RM50 a metre to chase it into the wall, and says it does not paint or colour-match.

Your DB box. The charger needs its own breaker and a 30 mA RCD (Type A with DC detection, or Type B, per TNB). If your board has no free slot, that is extra work.

Earthing. If the earth test reads above 10 ohms, EVHOME adds an earth rod and pit for RM500. You only find this out on the day.

Three-phase. A 7 kW charger can run on single-phase. TNB's guide says single-phase supports loads up to 10 kW. myTNB says landed homes may benefit from three-phase for a charger of 7 kW and above. Only TNB can change your supply, and its connection charge is separate from the fitting price.

Before you compare two quotes

Line them up on the same points: metres of cable, surface or hidden, RCD type, which charger, and warranty. Warranties differ. Voltara gives 1 year on labour-only jobs and 2 years on its charger packages. EVHOME gives 12 months on workmanship, or 24 months on both when you buy its charger package. EV Connection asks for a RM300 site-visit deposit, refunded if you go ahead.

Price sources, each read on its own page:

• Voltara, residential EV charger page, from RM900 (checked 20 Oct 2026)
• United Power Engineering, single-phase 7 kW charger service, KL and Selangor (checked 20 Oct 2026)
• United Power Engineering, services price list with three-phase 11 kW and 22 kW fitting (checked 20 Oct 2026)
• EVHOME, home EV charger setup from RM1,600 (checked 20 Oct 2026)
• EV Connection, home EV charger fitting only (checked 20 Oct 2026)
• TNB Customer Guide: EV Home Charger, PDF (checked 20 Oct 2026)
• myTNB, upgrade or downgrade your electricity supply (checked 20 Oct 2026)
